AC MOTOR START CAPACITOR
AC Motor Start Capacitor

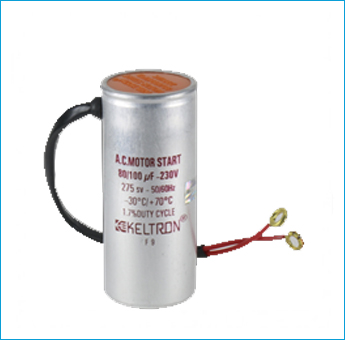

MD SERIES / ME SERIES
Shree Trading Syndicate Aluminium Electrolytic Motor Start capacitors are manufactured using High purity Etched and Formed Aluminium Foil with specially formulated Electrolytic to provide low PF characteristics and High end performance Motor Start Capacitors. Capacitors are manufactured under climatically controlled condition using Sophisticated manufacturing and testing machine.

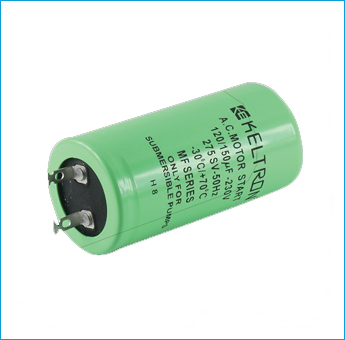

MS SERIES / MF SERIES
MU SERIES / MC SERIES
Series |
Description |
Operating Temperature Range |
Capacitance(µf) Range |
Working Voltage |
Duty Cycle |
Size Range Diaxlengthmm |
Body Color |
|
|---|---|---|---|---|---|---|---|---|
| MS PDF | |
Aluminium Electrolytic A .C Motor Start Capacitor Single Can Construction - Standard duty cycle | -300C to 700C | 20 µ F to 1020 µ F | 110 ~ 330 VAC | 1.7% | 30 X 55 to 45 x 100 | Green |
| MD PDF | |
Aluminium Electrolytic A.C Motor Capacitor Double Can Construction - Standard duty cycle | -300C to 700C | 20 µ F to 1020 µ F | 110 ~ 330 VAC | 1.7% | 30 X 75 to 45 x 125 | Metalic Gray |
| MF PDF | |
Aluminium Electrolytic A .C Motor Start Capacitor Single Can Construction - Light duty cycle | -300C to 700C | 20 µ F to 1020 µ F | 110 ~ 330 VAC | 0.84% | 30 X 55 to 45 x 100 | Green |
| ME PDF | |
Aluminium Electrolytic A .C Motor Capacitor Double Can Construction - Light duty cycle | -300C to 700C | 20 µ F to 1020 µ F | 110 ~ 330 VAC (Single Phase) | 0.84% | 30 X 75 to 45 x 125 | Metalic Gray |

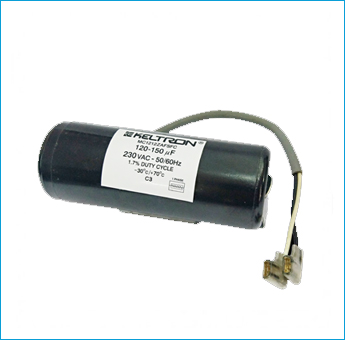

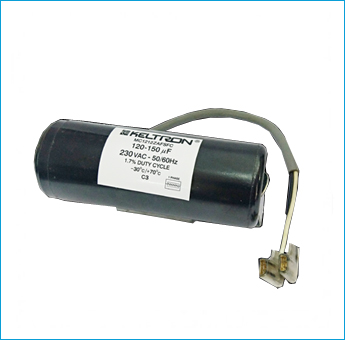

| MC PDF MU PDF |  |
Aluminium Electrolytic Motor Start Capacitor Phenolic casing Construction | -300C to 700C | 20 µ F to 552 µ F | 110 ~ 330 VAC (Single Phase) | 0.84 to 1.7% | 36 X 81 to 46 x 122 | Balck |

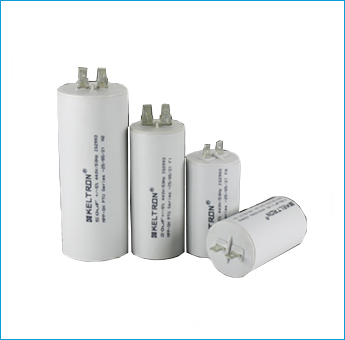

Realated Product
